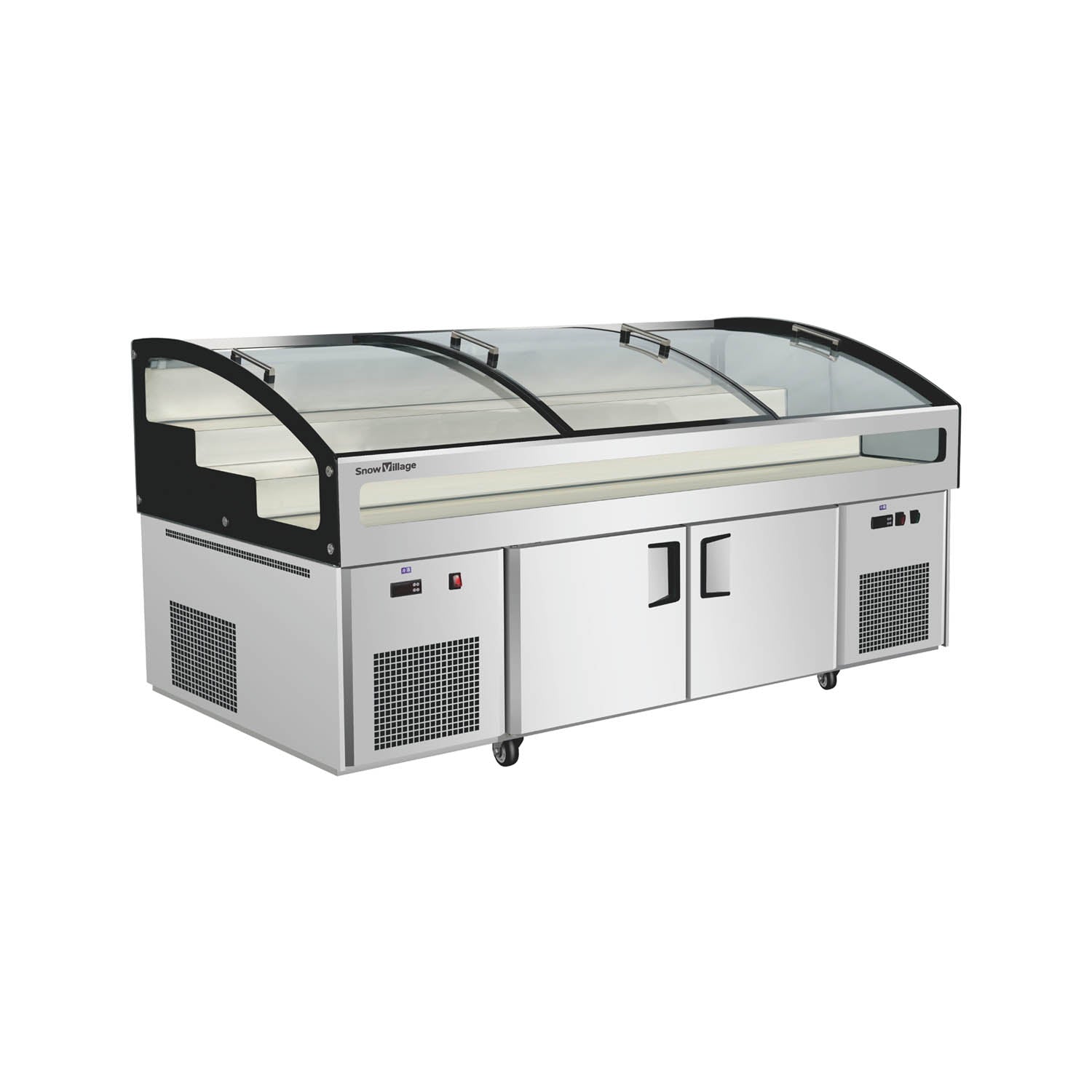

Ice Display Table BT-B Series - Type B (Curved Glass)
This versatile refrigerator combines cold storage for food and freezing with an upper display section for ingredients and dishes, allowing customers to easily view and select products.
The tiered display maximizes space, while the curved glass and LED strip lighting enhance the visual appeal of the food, making it more attractive and helping to drive sales.
Product Features:
- With curved, upper tiered glass display section
-
Optional step design
- Comes wth LED strip lighting
- Built-in night curtain
- Built-in Electronic Voltage Protector for enhanced system protection
- Insulation: 100% CFC-free Cyclopentane for optimal energy efficiency
-
Refrigerant: 100% CFC-free R290 for eco-friendly operation
Product Specifications:
| Model | BT-B1.8/D-T3 | BT-B2.0/D-T3 | BT-B2.5/D-T3 | BT-B1.8/D | BT-B2.0/D | BT-B2.5/D |
| Temperature Range (°C) | Upper: -2 ~ 5 | Lower: -5 ~ -5 / -15-5 | |||||
| Capacity (L) | Upper: 295 Lower: 223 |
Upper: 325 Lower: 223 |
Upper: 400 Lower: 332 |
Upper: 225 Lower: 332 |
Upper: 246 Lower: 223 |
Upper: 308 Lower: 332 |
| Power (W) | 650 / 700 | 800 / 850 | 650 / 700 | 800 / 850 | ||
| Net Weight (KG) | 160 | 175 | 270 | 100 | 110 | 160 |
| Compressor | Donper/Wanbao | |||||
| Refrigerant | R290 | |||||
| Dimension (mm) | 1835*1060*1045 | 2015*1060*1045 | 2515*1060*1045 | 1835*860*920 | 2015*860*920 | 2515*860*920 |
| Upgraded Version | ||||||

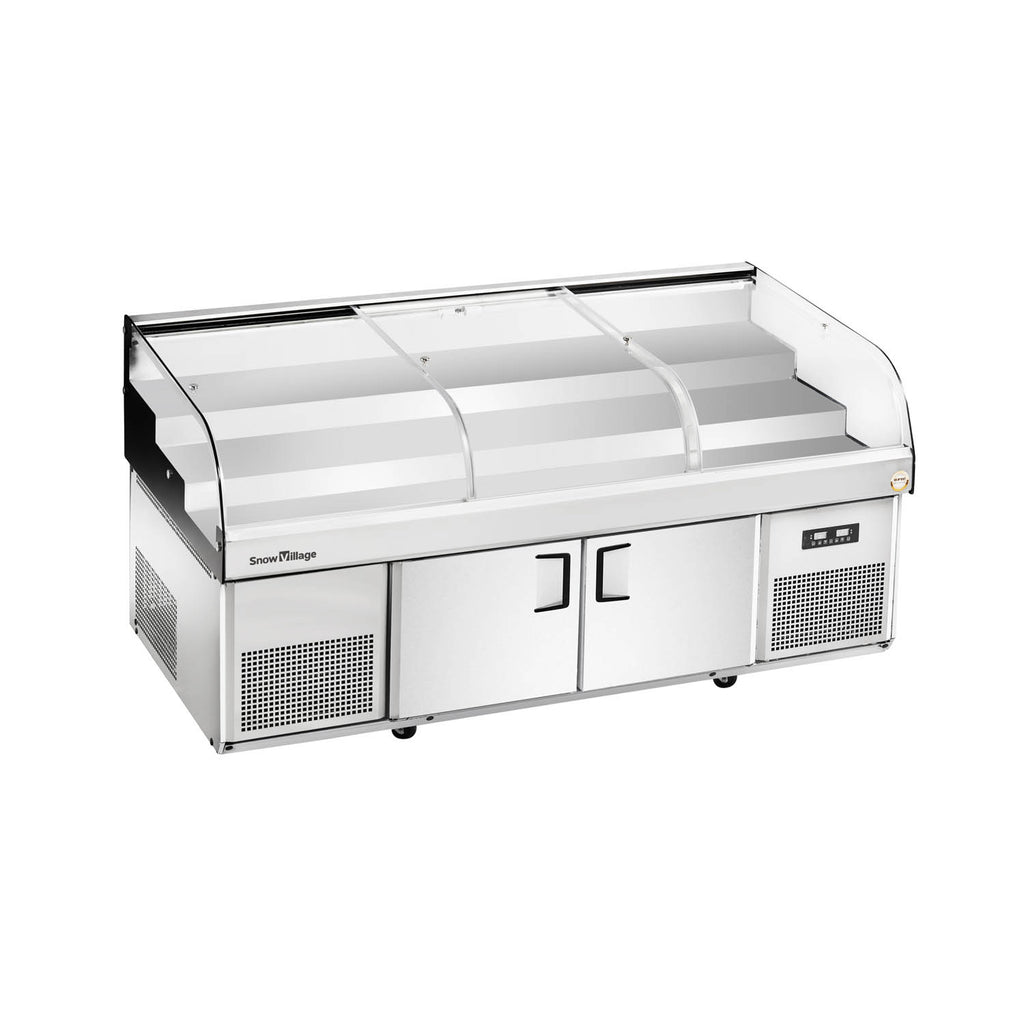

| Model | BT-K1.8-T3XQ | BT-K2.0-T3XQ | BT-K2.5-T3XQ | BT-K3.0-T3XQ | ||
| Temperature Range (°C) | Chiller: -2 ~ 8 Freezer: -12 ~ -18 |
|||||
| Capacity (L) | 440 | 470 | 640 | 710 | ||
| Power (W) | 400 | 580 | 740 | |||
| Net Weight (KG) | 100 | 110 | 140 | 170 | ||
| Compressor | Donper/Huayi | |||||
| Refrigerant | R290 | |||||
| Dimension (mm) | 1835*1030*1030 | 2015*1030*1030 | 2515*1030*1030 | 3015*1030*1030 | ||
